Known for their robust locking mechanism, Neutrik powerCON connectors prevent accidental disconnects, making them ideal for mobile, high-vibration, or mission-critical environments.

Main Types of PowerCON

PowerCON 20 A (Type V for NETIO)

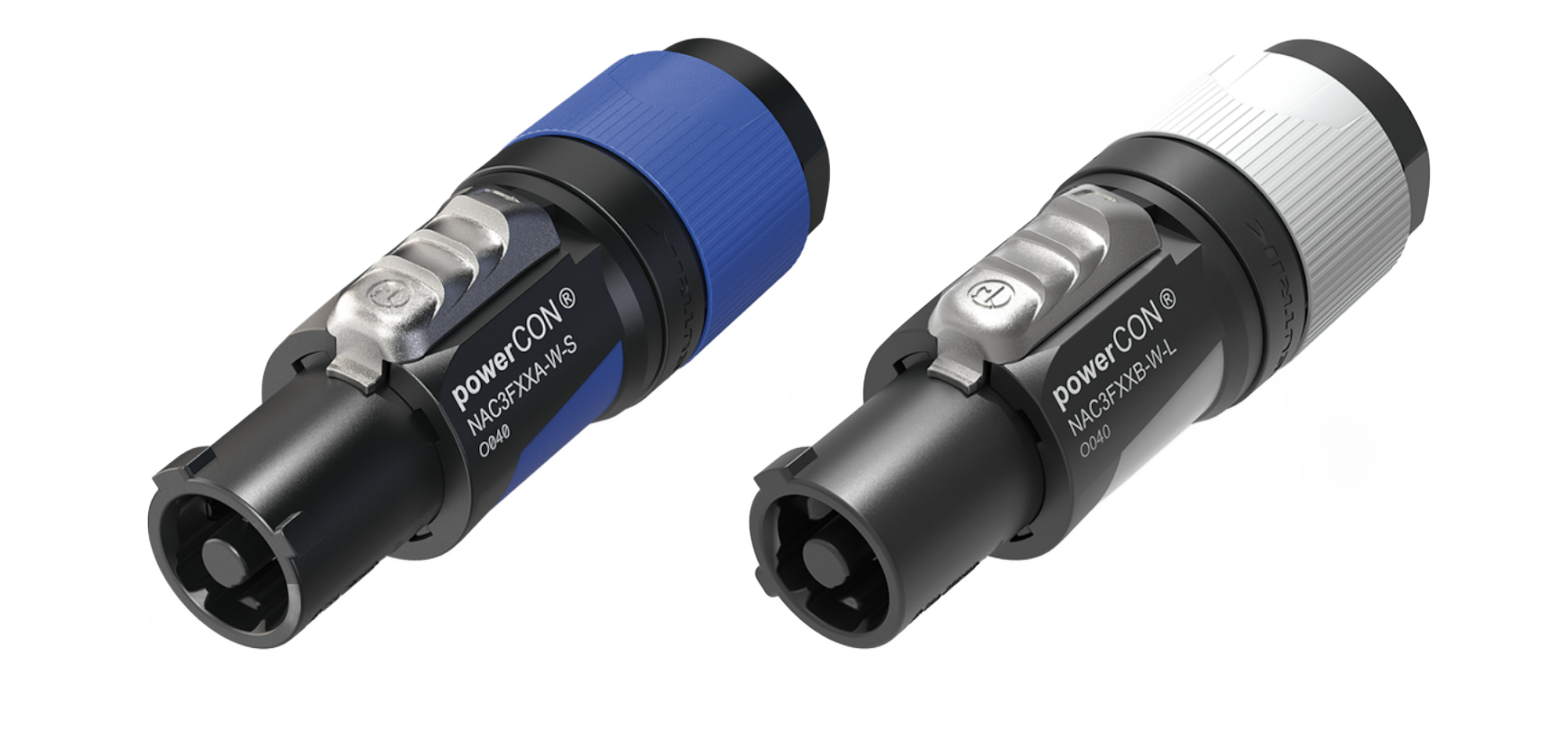

• Available in two mechanically incompatible variants to prevent incorrect connections:
• Blue (Type A): Power input (power-in)
• Gray (Type B): Power output (power-out)

PowerCON 32 A

• Designed for applications requiring higher current, such as stage lighting or industrial power distribution.

Key Features of PowerCON

• Locking mechanism for secure power connection
• High current capacity in a compact form factor
• Color-coded variants to avoid misconnection
• Resistant to vibration and mechanical stress

PowerCON Use Cases

• LED walls / big screens
• Professional AV installations
• large-scale AV setups
• Broadcast racks and control rooms
• Touring and mobile AV equipment
• Stage lighting and event installations
• High-end industrial and lab gear
• Anywhere that requires stable, secure, and high-performance power deliver

NETIO and PowerCON (Type V)

NETIO integrates powerCON connectors in some PDUs (xxV):

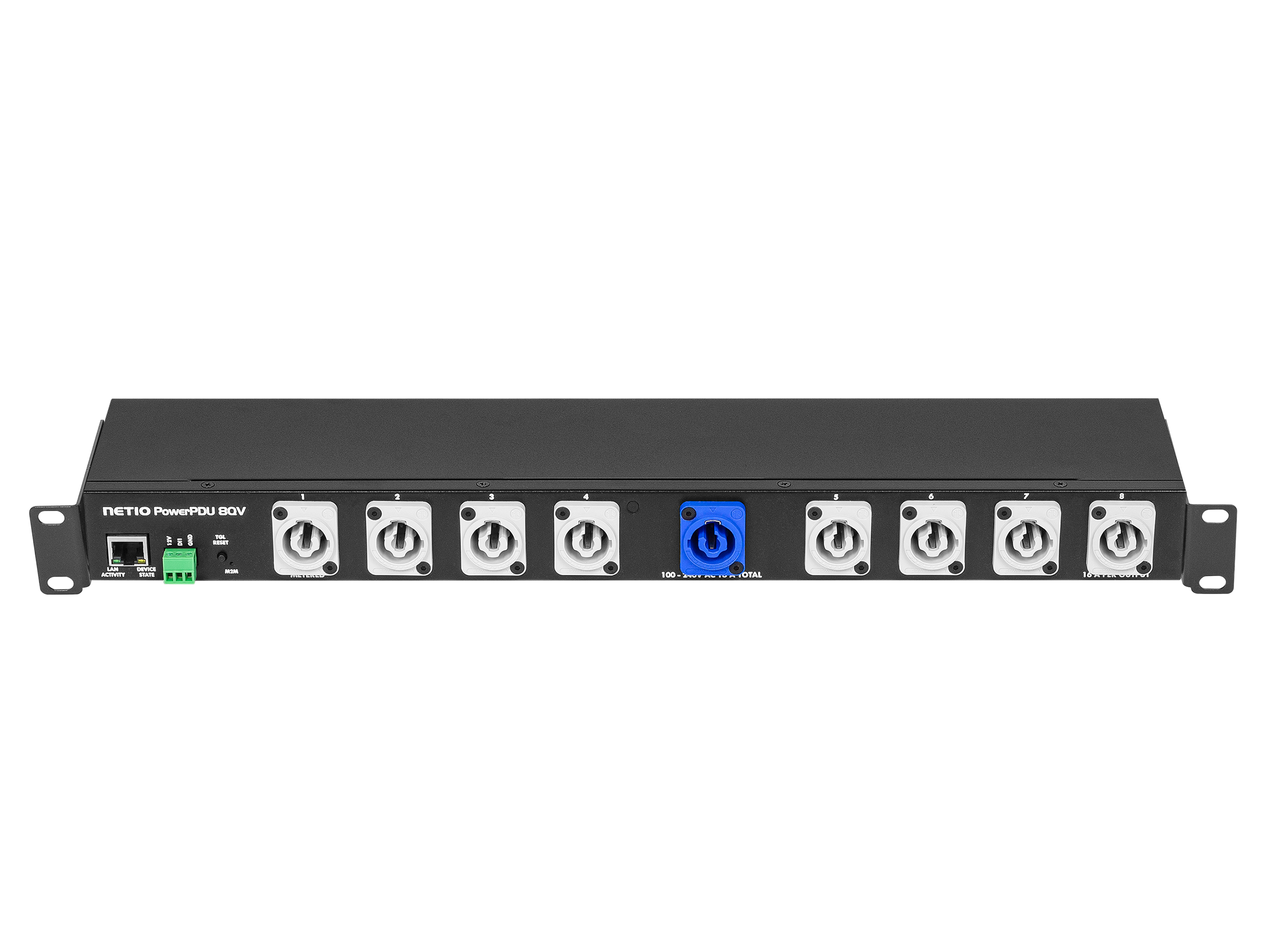

• PowerPDU 8QV (8 outputs with metering, Neutrik PowerCON)
• PowerPDU 4PV (4 outputs, without metering, Neutrik PowerCON)

NETIO PDUs Type V features

• Type V (NETIO products called „xxV”) are NETIO PDUs with PowerCON connector.
• 110/230V AC with 16A current limit (popular in Europe, UK and also USA).
• Blue connectors are power-in
• Gray/White connectors are power-out.

In real-world environments where equipment is often moved or exposed to vibration, powerCON ensures the power stays connected — no matter what

These PDUs are designed for professional AV, IT, and broadcast applications, offering remote control, power-up sequencing, energy metering, and open API support — with the added benefit of lockable powerCON outputs.
